Project Presentation
Name :
Group Composition :
OTTO Eric
GERMOND Florian
WANG Yuqi
Scenario :
Object Shape :
Two boxes with an attach for a belt.
Name of the contact at Eucalyptus :
Peronne Stephane
Sketch of the Object from Eucalyptus :
Coming soon…
Picture of the Object without instruments and electronics :
Coming soon…
Picture of the Object with instruments and electronics outside on the same table (put some circles and arrows on the picture to show where you're going to integrate all of these) :
Coming soon…
Picture of the finished Object (all is integrated):
Coming soon…
Demonstration Video :
Video 1&2 : https://youtu.be/3Sf0tsc74ew
vidéo 3 : les principes de fonctionnement du logiciel embarqué https://www.youtube.com/watch?v=z2K7OnHhz2U
vidéo 4 : les principes de fonctionnement du logiciel distant. 4.1 https://www.youtube.com/watch?v=qestAH9n1bU 4.2 https://www.youtube.com/watch?v=UyHVffoCuv8
Hardware specifications :
Hardware List :
| sensor or actuator | links to datasheet or technical document |
quotes and purchases
| title | seller link | french reseller link | french reseller reference id | unit price TTC | Quantity | total price TTC |
| Convertisseur USB vers VGA | http://www.amazon.fr/s/ref=bl_dp_s_web_340858031?ie=UTF8&node=340858031&field-brandtextbin=KALEA+INFORMATIQUE | 59.98€ | 1 | 59.98€ | ||
| Zotac Pico PC pi321 | http://www.ldlc.com/fiche/PB00178274.html | 299.95€ | 1 | 299.95€ | ||
| Lunettes microOptical | 1500€ | 1 | 1500€ | |||
| Batterie USB | http://www.amazon.fr/gp/product/B00D5T3QK4/ref=as_li_ss_tl?ie=UTF8&tag=ianker0b-21&linkCode=as2&camp=217145&creative=399373&creativeASIN=B00D5T3QK4 | 26.99€ | 1 | 26.99€ | ||
| Converter alimentation USB | http://www.startech.com/fr/WhereToBuy/Rediriger?partner_code=MISCFR&product_id=USB2TYPEN1M | 5.60€ | 1 | 5.60€ | ||
| Camera | http://www.hightechplace.com/catalog/product/view/id/42493/s/endoscope-usb-etanche-2-metres-4-leds/category/1604/ | 33.90€ | 1 | 33.90€ |
| Total Price | 1925.42€ |
Les spécifications des boîtiers sont disponibles ici : specs_euca_gr4.pdf
Specifications and interface of the service on the object
Specifications of the interface of high added value service
Note : (including a figure on the orchestration between services on objects and information systems)

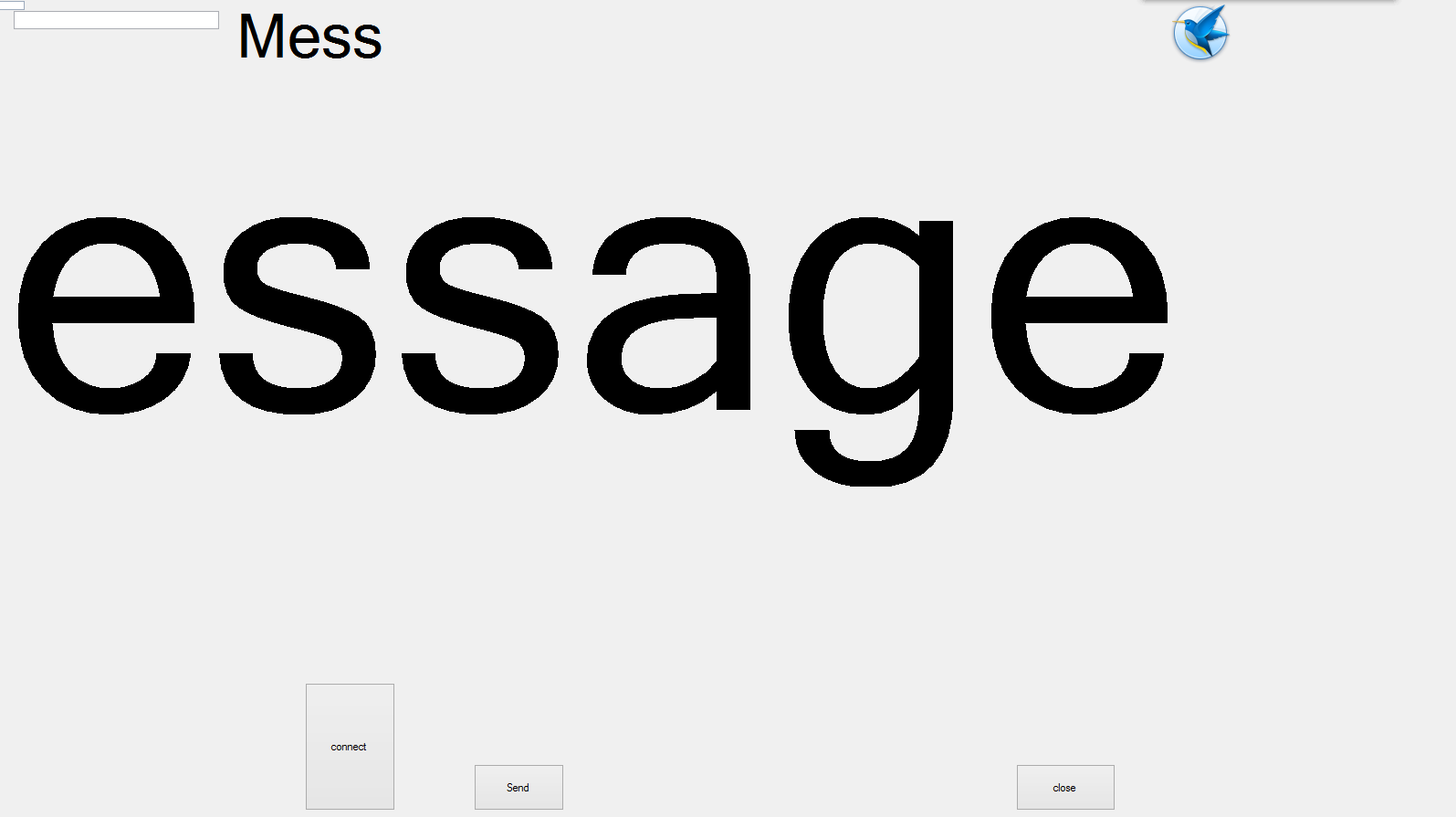

interface on the glass on ZOTAC:

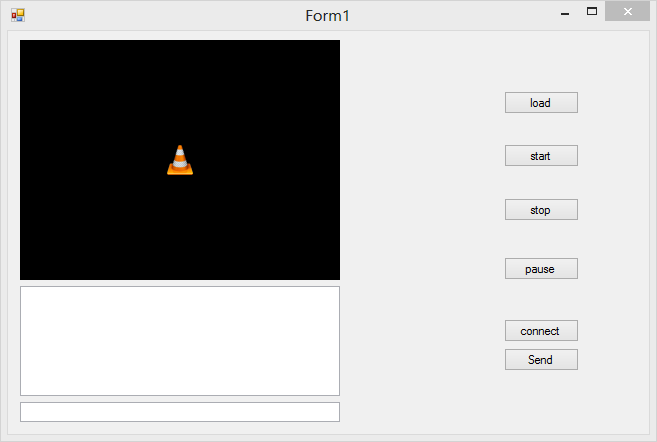

interface of the server on another PC
Project Files:
. wcc of the two containers (embedded and on the remote PC) :
Beans added for the embedded container (for the service on the object) ** (DLL and Source code for each of them)
Beans added for the remote PC container (for the high added value service on the PC) ** (DLL and Source code for each of them)
Chesklist to install the embedded service on the object
Chesklist to install the remote service/application on the PC
ZOTAC: client.zip projet.zip you should put the 'client' project as a refrence in the 'project' project
remote PC as a server: vclplayer.zip
Shell for opening the vlc server: videostreamserver.zip
PS. for create a device, you can use 'service author' to create services like: sampleservice.zip then you should use it in the 'Device Builder' to build a device like: samplesettings.zip finally we can create a project C or C# generated by Device builder like: sample3.zip
for creating a vlc server, you should : vlcserver.zip
Results of the relations with Eucalyptus (being factual without personal opinion)
Prospects :
Possible extensions of the object
hearphone，GPS，USB WIFI …
Possible extension of the service on the Object
maybe connect to smartphone and show the notification on the glass….
Possible extension of the high added value Service
can use the opportunity services in the environment
Possible GUI for data visualization
Because it's a real computer, it can use all kind GUI possible, just need to test if it's suitable for glass.
